Probe Stations

Sivaley carries the following probe stations provided by Everbeing Int'l Corp for your research and production needs.

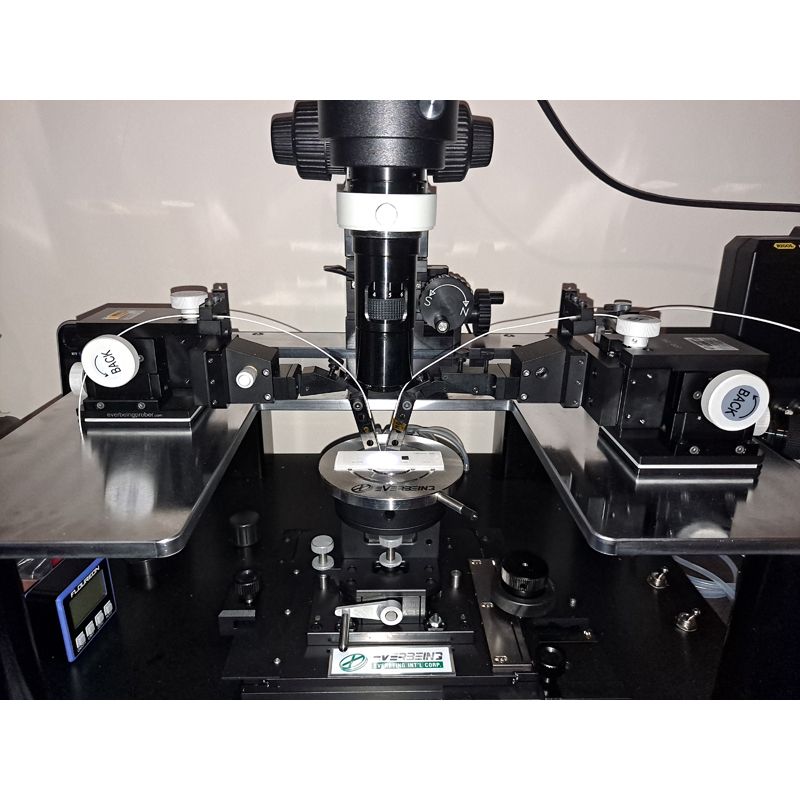

EverBeing Photonic/Fibre Optic Probe Station

The Photonic Probe station is designed to allow flexible positioning of optical fibre to the device under test DUT. The fibre can be precisely positioned (course and fine adjustment) from vertical to 60 degrees from vertical. (we can also offer horizontal alignment. The pitch or theta can also be adjusted by ±12 degrees 0.05° resolution.

Using our EB-005 micropositioners we can offer you either 0.7µm (100TPI) or 0.35µm (200TPI) positioning in X, Y and Z axis.

5 axis of fibre positioning
Monozoom Microscope
Microscope X-Y panning ±25mm with optional microscope tilt.
Precision coaxial chuck stage
Fibre Optic, DC, RF and mmWave heads
Optional Heated Chuck
Optional Anti-vibration table or table-top.

Please contact us for more information.

Contact Us

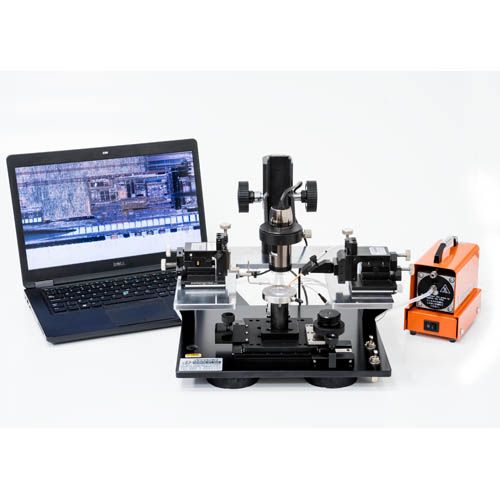

EverBeing C-Series Probe Station, C-2 Complete Package

Package consists of:

C-2 two inch probe station with quick 2 inch coaxial X-Y stage to 10um resolution (320mm x 320mm x 320mm)
Two EB-700E micropositioners with magnet on/off bases,
Two screw nut tip holders and a pack of 10um probe tips
Dinolite 5MP digital microscope with 140X optical zoom and 2x digital zoom fitted with a coaxial light stage offers outstanding magnification and clarity as shown.
You will also receive a vacuum pump to hold your sample to the stage.

Everything you need to start testing within an hour of receiving your package.

Please contact us for more information.

Contact Us

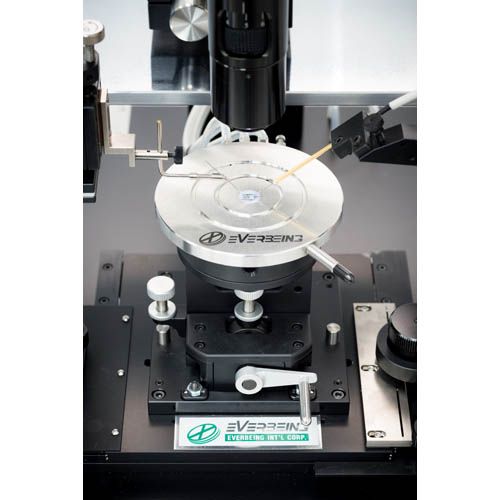

EverBeing C-Series Probe Station, C-2, C-4, C-6, C-8

Celebrating over 25 years of manufacturing probe stations and micro positioners the C-Series are one of the world’s most popular and affordable, yet built with precision and repeatability.

They are 6 models in this series, starting at 2 inch chuck to 8 inch C2, C2-PLUS, C2-RF, C4, C6 and C8.

With a 10 micron precision X-Y alignment, hard chrome pated platen, vacuum chuck and anti-vibration mounts as standard, makes this compete with probe stations that cost many times the price. The 4 inch and above features chuck up/down. Available with a trinocular microscope or a Dinolite USB microscope.

Please contact us for more information.

Contact Us

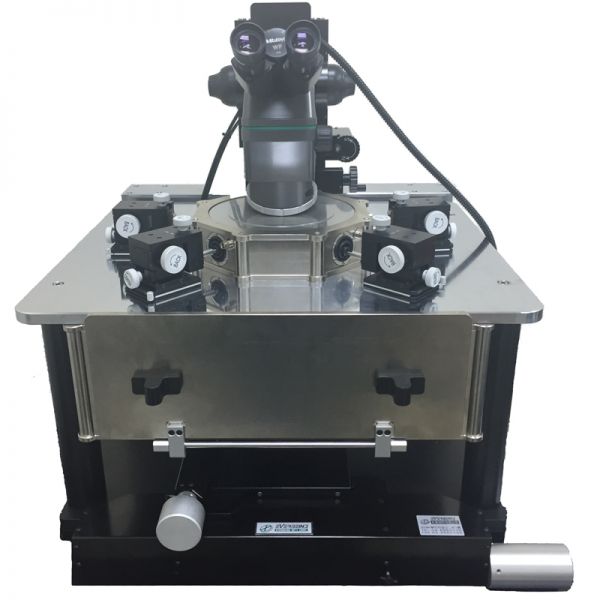

EverBeing Environmental Probe Station - Oxygen Free, Hot Chuck with Cooling

The Everbeing Chamber Plus series of analytical probe stations is an extension of their flagship EB Series probe station.

Take your DC and RF measurements further with complete temperature control from 5°C to 400°C (depending on hot chuck model), can also go as low as -40°C. Nitrogen purge to remove moisture.

The EverBeing EB series is our top of the line probe station. The features and foundation are solid for providing repeatable, accurate measurements in both DC and RF applications.

Please contact us for more information.

Contact Us

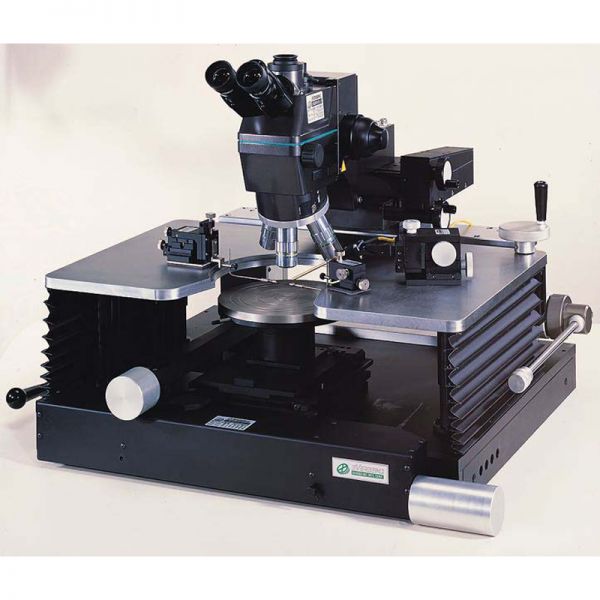

EverBeing BD-Series - Analytical Probe Station. BD-4, BD-6, BD-8, BD-12

The EverBeing BD series is our top of the line probe station. It’s features and foundation are solid for providing repeatable, accurate measurements in both DC and RF applications.

Analytical Probe Station with Vacuum Chuck for 4", 6", 8", 12" Wafer diameter
Large Knob for High Precision Stage
Back-lash free movement
Mounting for up to 12 micropositioners
4.5” Probe Card Holder compatible
Platen Height Adjustable
Platen Linear Up/Down
Micropositioner Standby Dock
Microscope Tilting for E-Z lens switching
Stainless Steel or Gold Plated Vacuum Chuck

Please contact us for more information.

Contact Us

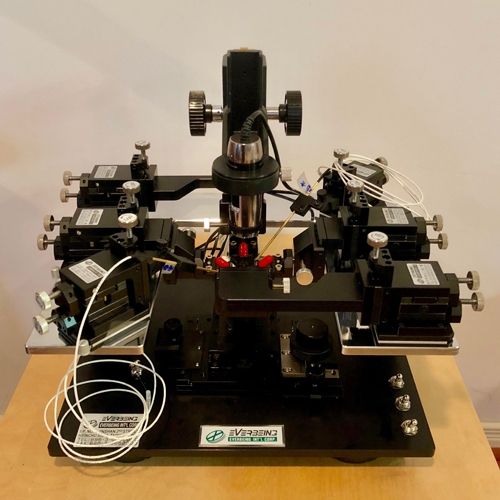

EverBeing C-2 RF Probe Station

Celebrating 25 years, EverBeing have launched the latest addition to their line, the C2-RF, the world’s smallest and most affordable RF Probe Station.

Measuring just 360mm X 360mm and only 26Kg, it can hold 4 RF probes and two DC bias probes on the hard chrome platted platen.

Fitted with a 2 inch vacuum chuck, four anti-vibration mounts and 10 micron precision X-Y alignment, makes this compete with probe stations that cost many times the price. The U Shaped chuck holds the DUT and RF Calibration substrate.

Please contact us for more information.

Contact Us

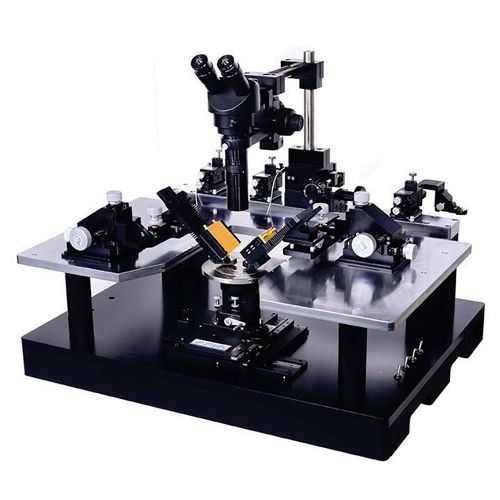

EverBeing EB-6A MMWAVE Probe Station

Following on from their success of the C-2-RF probe station, the worlds smallest and affordable 2 inch probe station, EverBeing now offer a range of Millimeter-Wave Probe Stations for precise integration with your existing Vector Network Analysers (VNA), wave guides and frequency extenders from leading brands like Anritsu, Keysight, Rohde & Schwarz, VDI, OML.

Two models are available EB-6A and EB-6V to accommodate the different sizes of waveguides and frequency extenders you prefer.

The EB-6A is designed specifically to accommodate Anritsu equipment whilst the EB-6V is more generic to work with Keysight, Rohde & Schwarz, VDI, and OML mmWave modules.

Please contact us for more information.

Contact Us

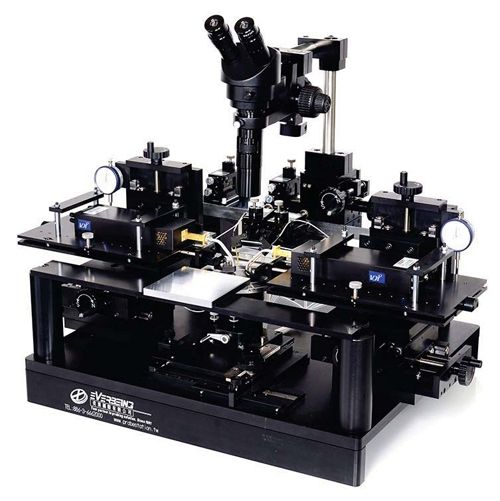

EverBeing EB-6V MMWAVE Probe Station

Following on from their success of the C-2-RF probe station, the worlds smallest and affordable 2 inch probe station, EverBeing now offer a range of Millimeter-Wave Probe Stations for precise integration with your existing Vector Network Analysers (VNA), wave guides and frequency extenders from leading brands like Anritsu, Keysight, Rohde & Schwarz, VDI, OML.

Two models are available EB-6A and EB-6V to accommodate the different sizes of waveguides and frequency extenders you prefer.

The EB-6A is designed specifically to accommodate Anritsu equipment whilst the EB-6V is more generic to work with Keysight, Rohde & Schwarz, VDI, and OML mmWave modules.

Please contact us for more information.

Contact Us

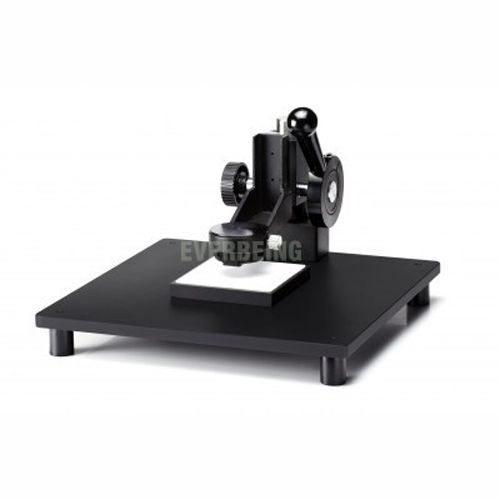

EverBeing KSR-4 Four-Point Prober, Sheet Resistivity

The EverBeing KSR-4 Four-Point Probe System is an simple-to-use tool for the rapid measurement of sheet resistance, resistivity, and conductivity of materials. To be used in conjunction with your existing Source Measure Unit (SMU) or current source and volt meter. Or with our low cost SMU4001 Head Up/Down 30mm, Probing, Z Resolution = 10 Micron.

Please contact us for more information.

Contact Us
